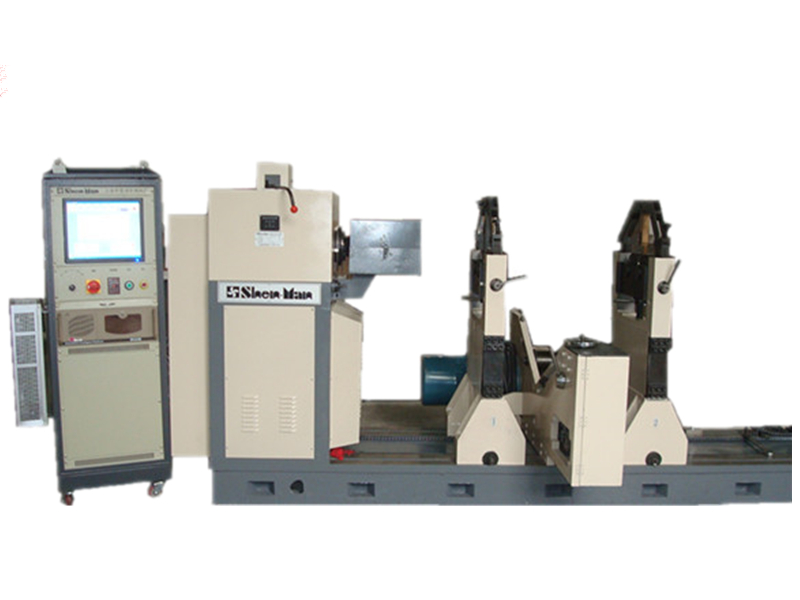

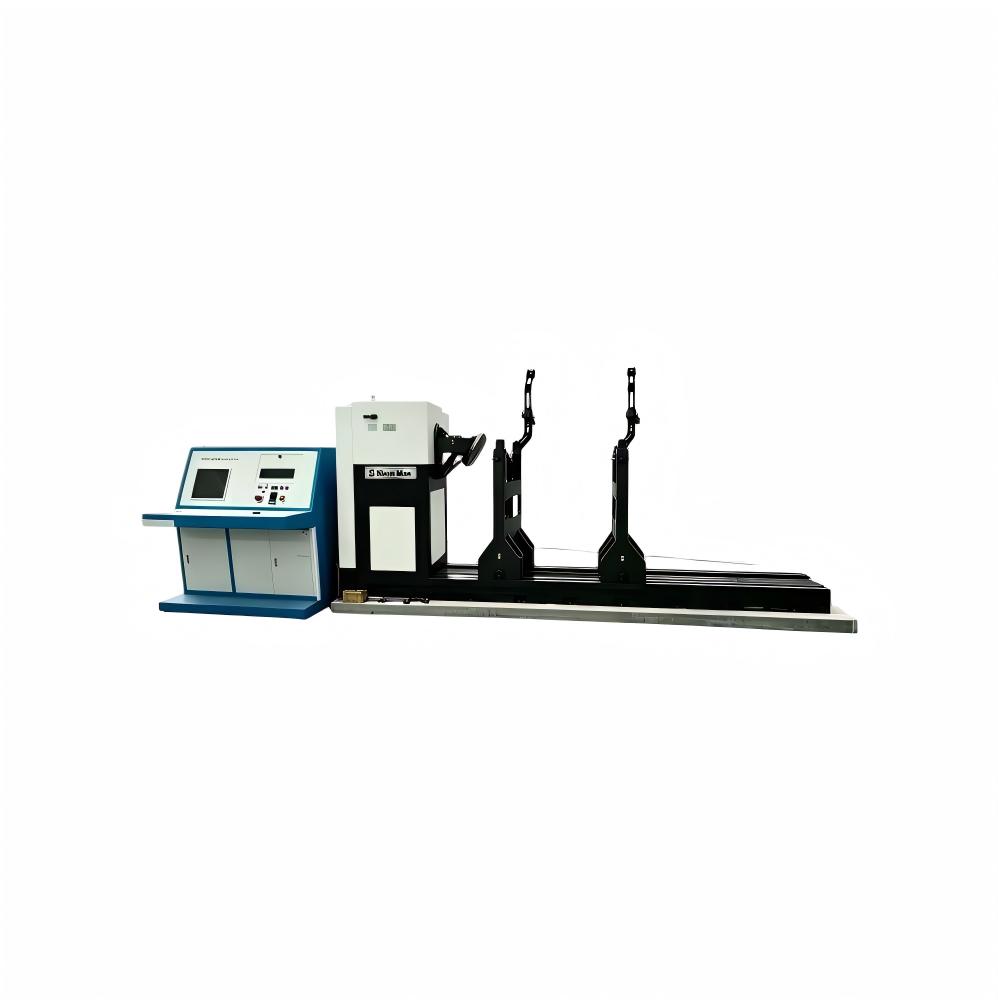

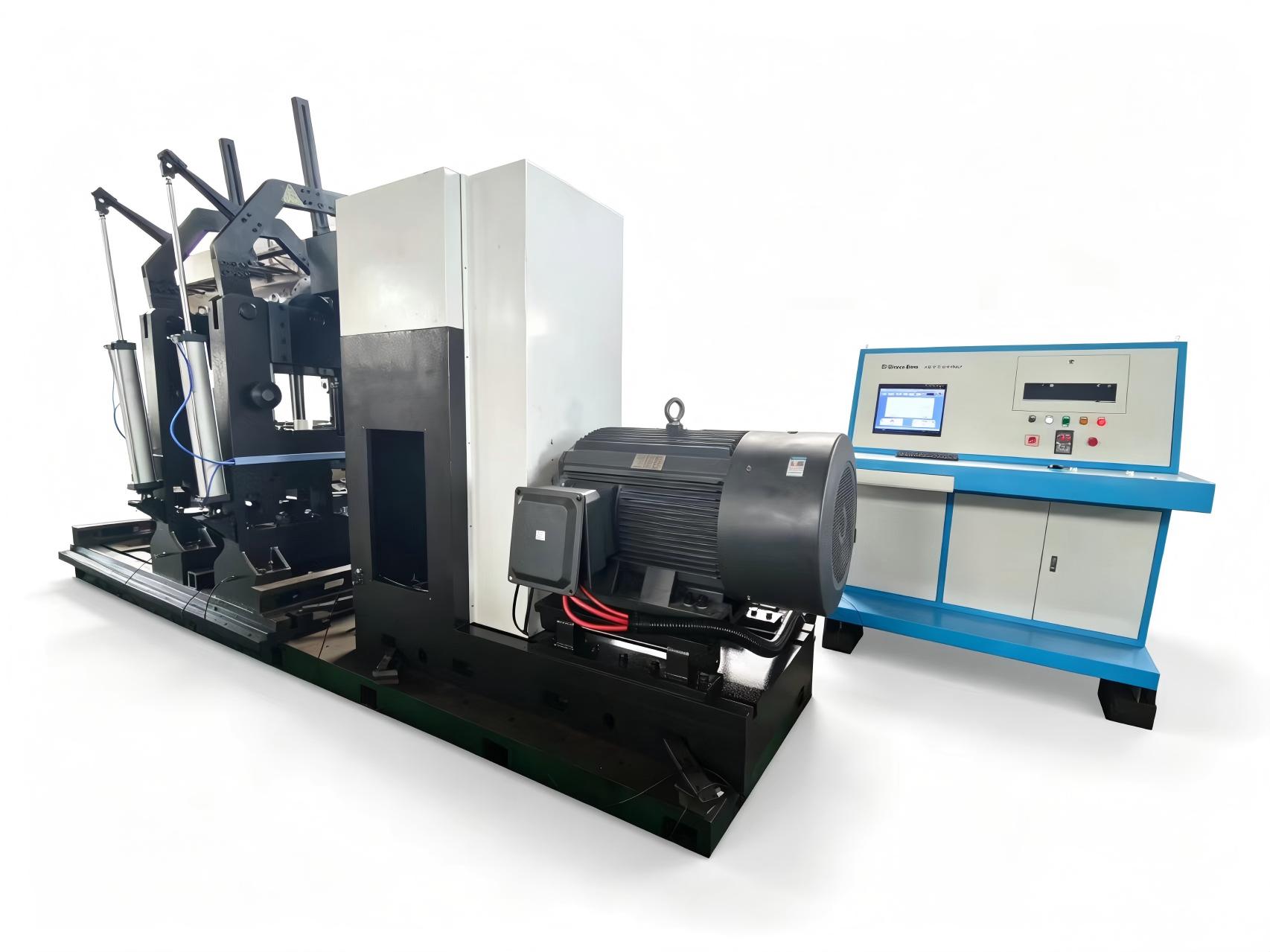

SB-14(10 tons) universal joint drive hard support balancing machine
Shanghai Shenman universal joint dynamic balancing machine is suitable for 5kg-30T paper dryer, blower rotor, steam turbine rotor, large fan impeller and other rotating parts balance check. The universal joint dynamic balancing machine adopts universal coupling transmission, which can obtain a variety of balanced speeds, and has high precision, convenient operation and high work efficiency.
SB-14(10 tons of workpiece) universal joint drive hard supportbalancing machineis mainly used in large generator rotor, steam turbine, ceramic machinery, drum, fan, printing machinery, textile machinery and other rotating body workpiece balance correction. The machine adopts universal coupling transmission, with frequency converter to achieve stepless speed regulation, and high precision, convenient operation, high efficiency. The measurement system adopts HSC microcomputer measurement system. The speed, value and phase are all displayed digitally. The 6 types of rotors are optional. The display is intuitive and can be memorized. The unbalance is directly displayed with "g. The electromechanical transducer adopts piezoelectric (magnetoelectric) sensor, which has the characteristics of large output, reliable performance and high sensitivity.
| SB-14(10000kg) universal joint drive shaft balancing machine | |
| workpiece (kg) | 10000 |
| workpiece (mm) | 2100 |
| supporting shaft diameter range (mm) | 40-180,180-320 |
| Minimum distance between two support centers (mm) | Min 300 |
| coupling to the right support seat (mm) | 2500 (length can be selected according to customer) |
| Balance speed (r/min) | 180-1200 (frequency conversion speed regulation) |
| Motor power (kw) | 30 |
| Minimum reachable residual unbalance emar(g · mm/kg) | ≤ 1 |
| Unbalance Reduction Rate URR | ≥ 90% |
| Power Configuration | three-phase/380V ; 50HZ |
| Cardan shaft (N?M) | 2250 |
| with vertical control cabinet | electric measuring box adopts liquid crystal color display |
| Rolling frame middle bearing | NSK (Japan) |
| speed regulating device | Variable frequency speed regulating device |
