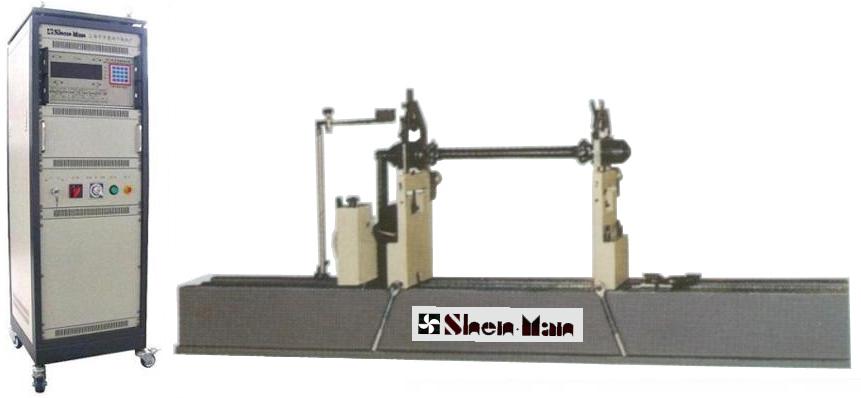

SA-6(160kg) multi-function ring with balancing machine

Shanghai Shenman ring belt balancing machine is suitable for 16-6000kg rotor dynamic balance correction. The ring belt drive balancing machine has no residual unbalance of the universal coupling itself and the unbalance error caused by the coupling fixture, which truly guarantees the balance quality of the workpiece, improves the balance accuracy, and the ring belt drive is convenient to load and unload, and the work efficiency is high.

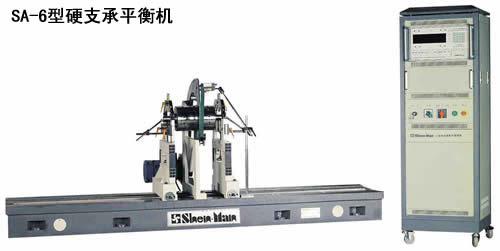

SA-6 type hard bearing balancing machine is the company's own design and manufacture of ring belt balancing machine, widely used in medium-sized motor rotor, machine tool spindle, fan, wind wheel, ventilation equipment, ceramic machinery, roller, rubber stick, and other rotating body workpiece balance correction. This machine adopts the ring belt drive, there is no residual unbalance of the universal coupling itself and the unbalance error caused by the coupling fixture, so the balance quality of the workpiece is truly guaranteed, the balance accuracy is improved, and the ring belt drive is convenient for loading and unloading. High work efficiency. Use multi-speed motors to achieve a variety of balanced speeds to meet different workpiece requirements. The measurement system adopts SMC microcomputer measurement system. The speed, magnitude and phase are all displayed digitally. The 6 types of rotors can be selected. The display is intuitive and can be memorized. The unbalance is directly displayed with "g. The electromechanical transducer adopts piezoelectric (magnetoelectric) sensor, which has the characteristics of large output, reliable performance and high sensitivity.
