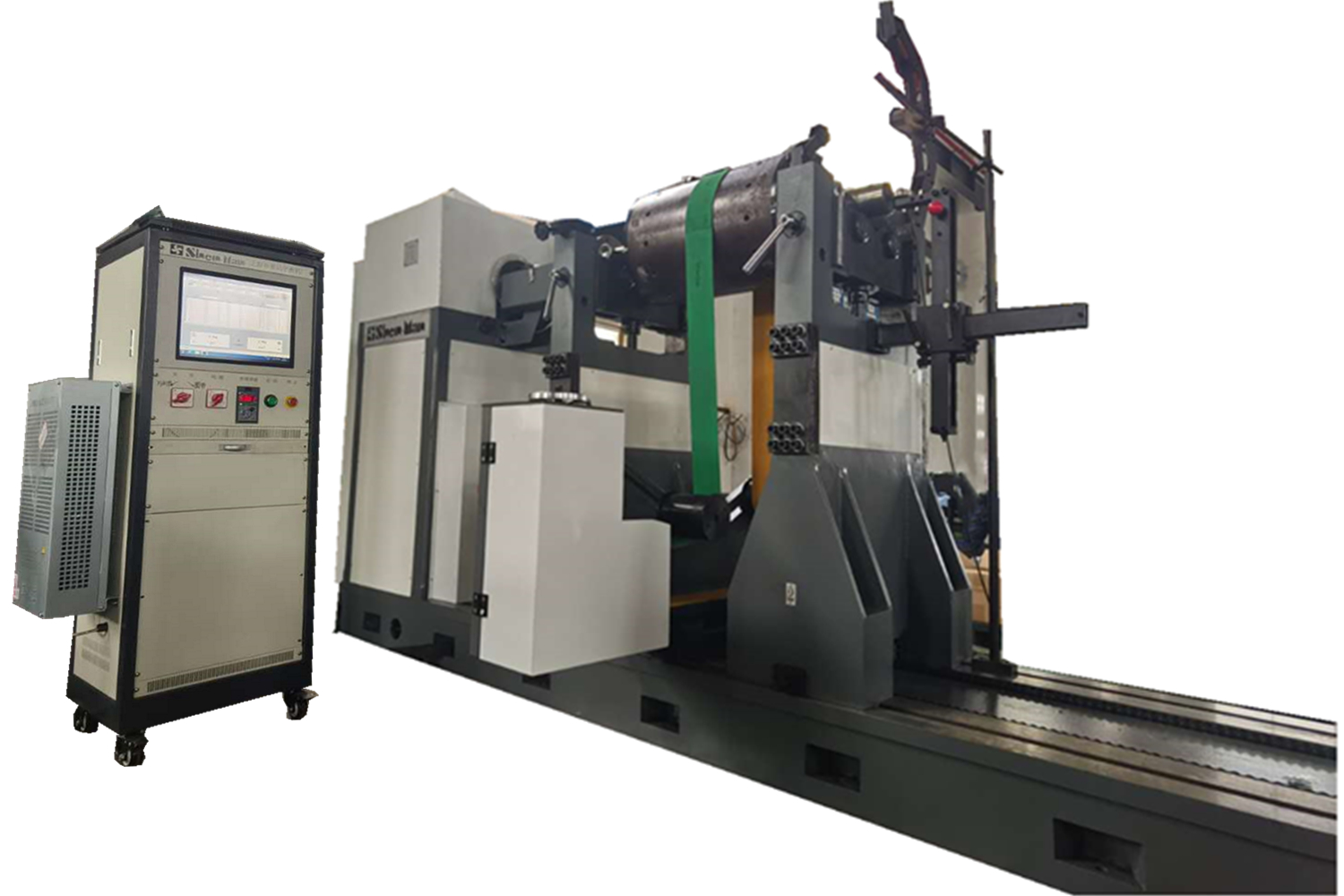

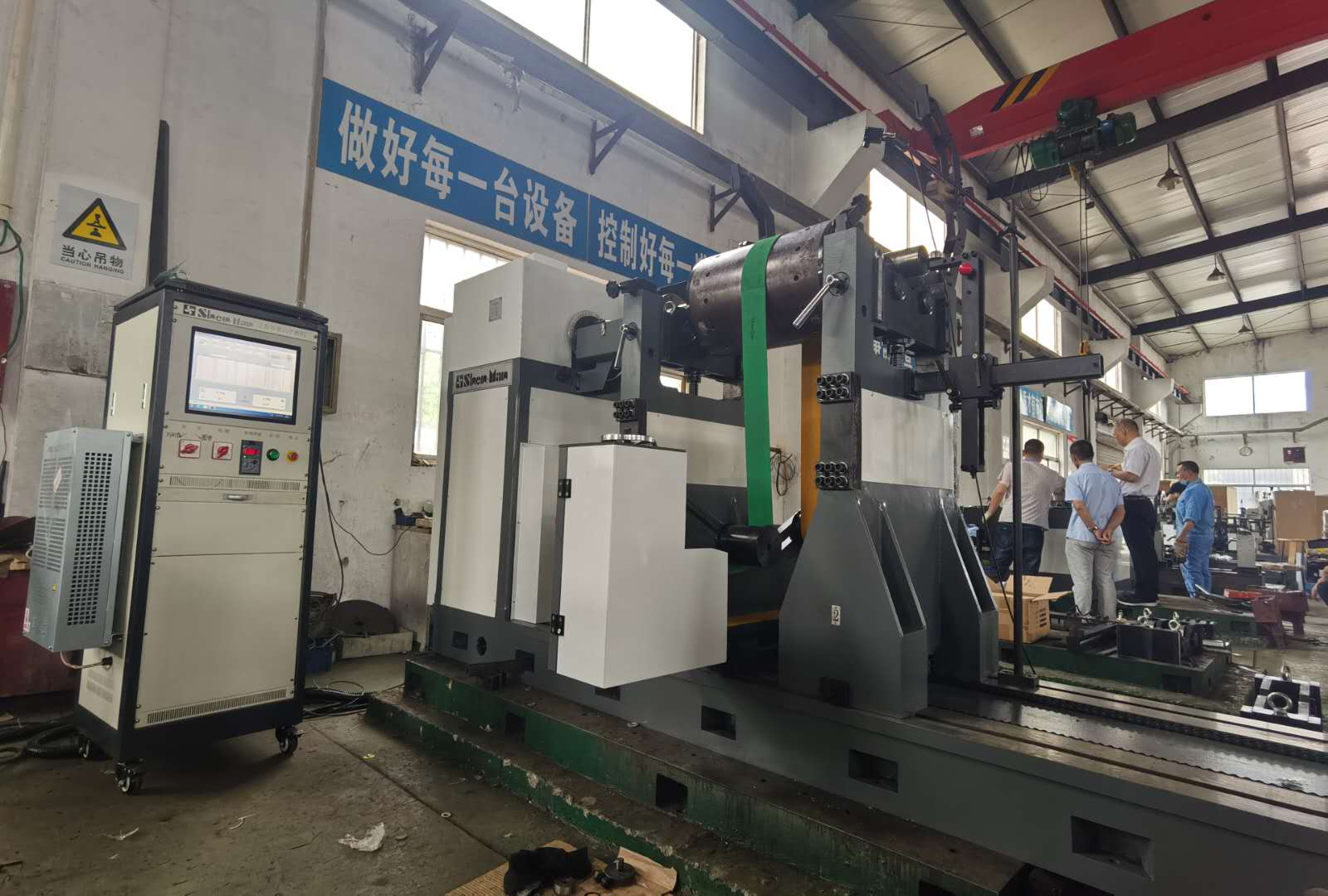

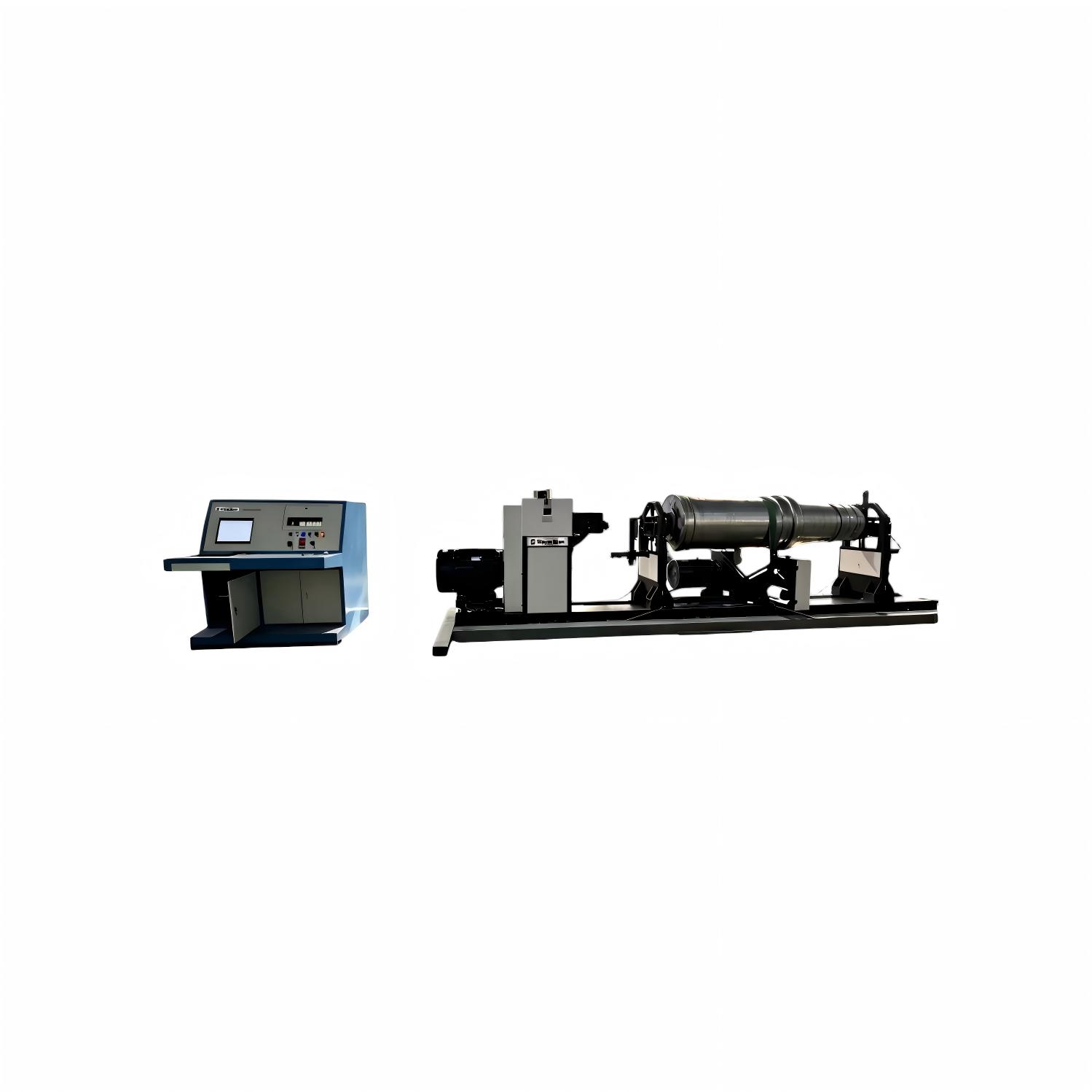

SB/SA-14D (1000kg) Double-Drive Universal Joint & Belt Drive Dynamic Balancing Machine
Shanghai Shenman Double-Drive Universal Joint & Belt Drive Dynamic Balancing Machine is suitable for 1000-10000kg paper dryer, blower rotor, turbine rotor, large fan impeller and other rotating body workpiece balance check. The universal joint dynamic balancing machine adopts universal coupling transmission, which can obtain a variety of balanced speeds, and has high precision, convenient operation and high work efficiency.
SB/SA-14D 10-ton workpiece universal joint ring belt double drive balancing machine is mainly used in large generator rotor, steam turbine, ceramic machinery, drum, fan, printing machinery, textile machinery and other rotating workpiece balance correction. The machine adopts universal coupling transmission, with frequency converter to achieve stepless speed regulation, and high precision, convenient operation, high efficiency. The measurement system adopts HSC microcomputer measurement system. The speed, value and phase are all displayed digitally. The 6 types of rotors are optional. The display is intuitive and can be memorized. The unbalance is directly displayed with "g. The electromechanical transducer adopts piezoelectric (magnetoelectric) sensor, which has the characteristics of large output, reliable performance and high sensitivity.
| SB/SA-14D 10-ton workpiece universal joint ring with double drive balancing machine technical indicators | |
| workpiece (kg) | 10000KG |
| workpiece (mm) |
2100/3000mm (optional) |
| supporting shaft diameter range (mm) |
40-180-320mm |
| Minimum distance between two support centers (mm) |
600mm |
| coupling to the right support seat (mm) |
3000mm |
|
Diameter range of ring belt drive |
100-900mm |
| Balance speed (r/min) |
80-1000 (stepless speed regulation) |
|
universal coupling |
2250N·m |
| Motor power (kw) | 30 |
| Minimum reachable residual unbalance emar(g · mm/kg) |
universal joint ≤ 1g · mm/kg; ring band ≤ 0.5g · mm/kg |
| unbalance reduction rate URR(%) | ≥ 90 |
| Power Configuration | three-phase/380V ; 50HZ |
| transmission device | Universal joint, double drive with ring and belt |

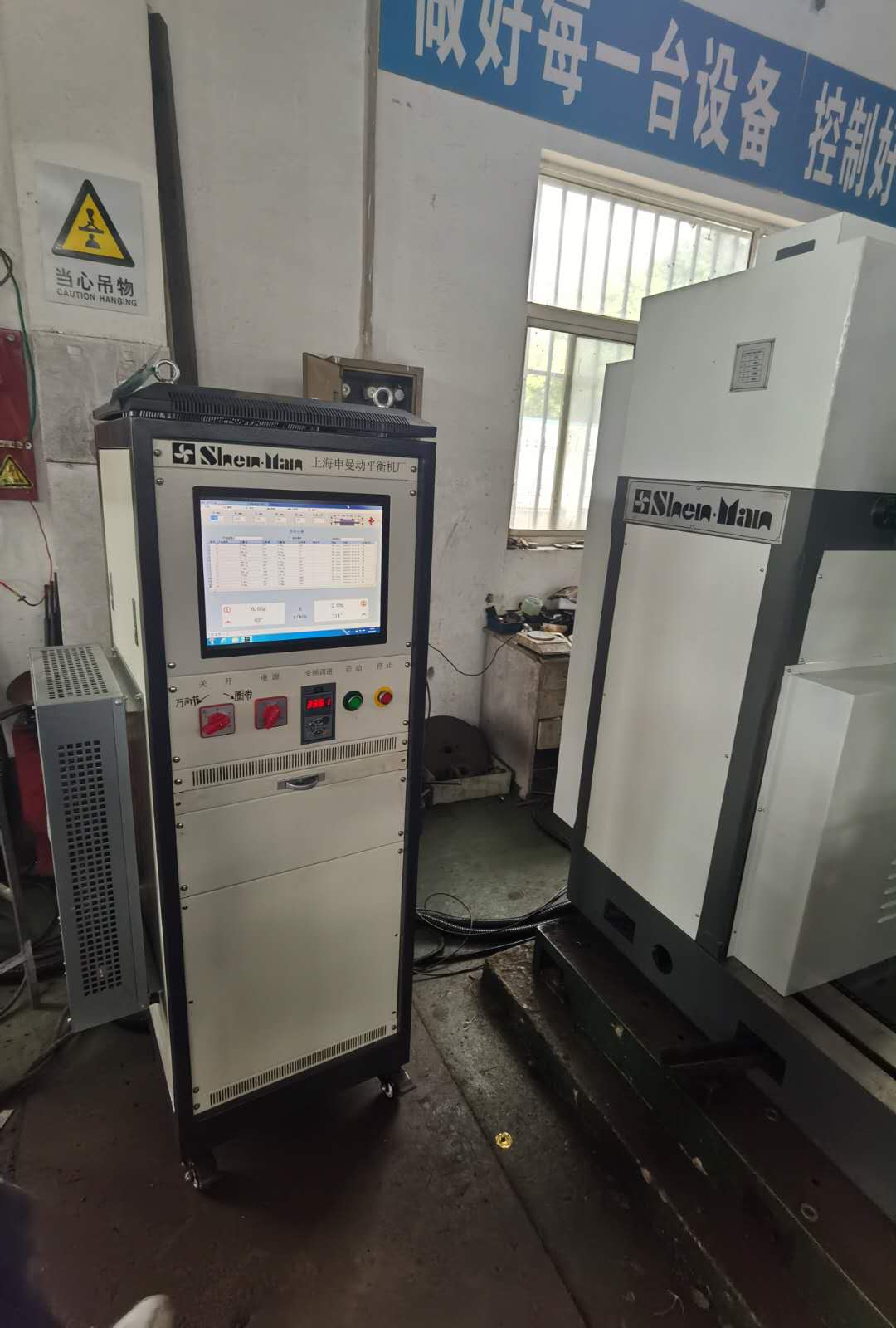

| with vertical control cabinet | electric measuring box adopts microcomputer digital display/upgradeable computer liquid crystal display system |
| Rolling frame middle bearing | NSK (Japan) |
| speed regulating device | Variable frequency speed regulating device |
| Manufacturer | Shanghai Shenman Dynamic Balancing Machine Factory |
